Anesthetic Workstation [SD_0868]

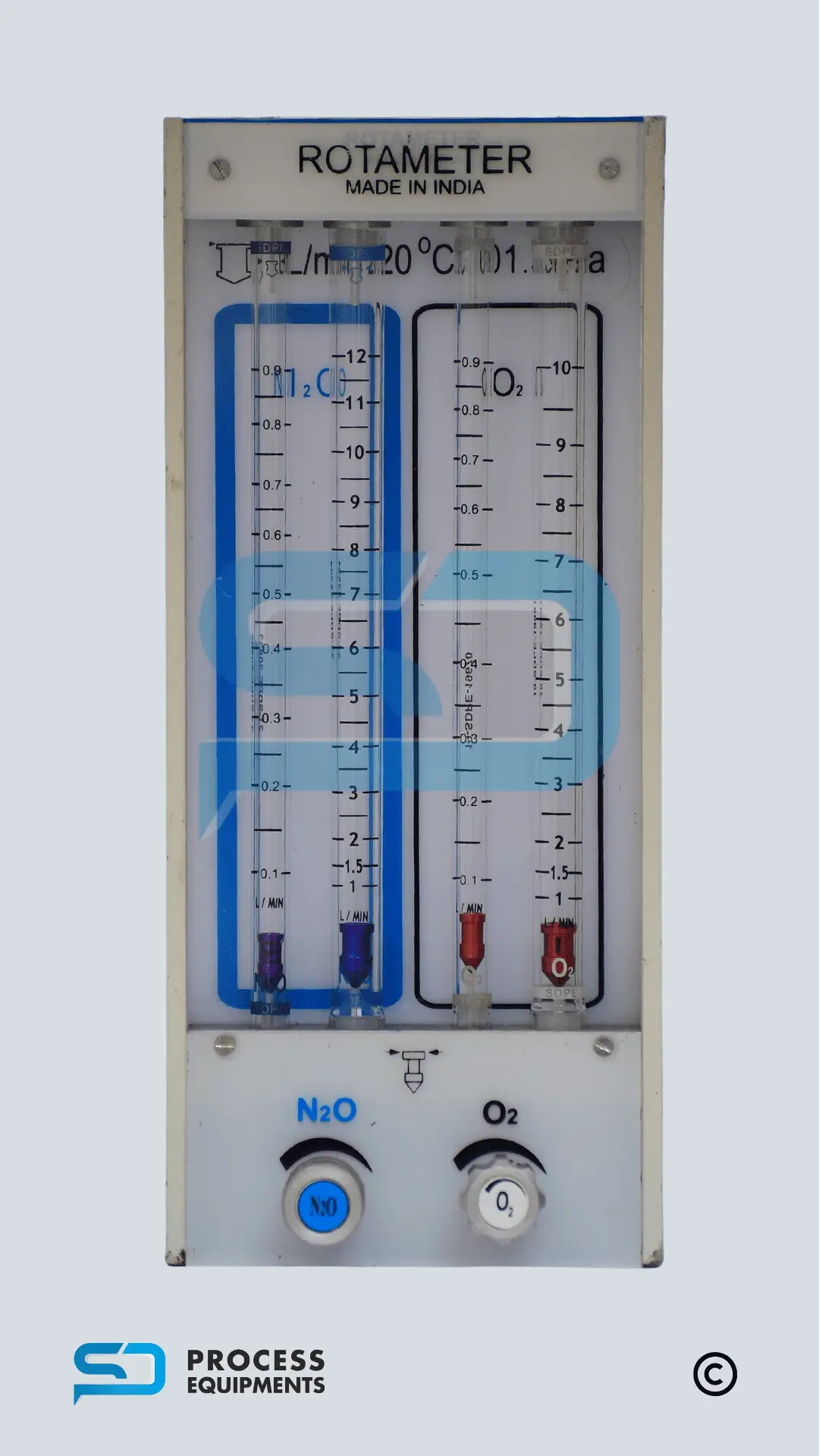

SDPE 4 Tube Hypoxia Guard Rotameter is a precision medical gas flowmeter assembly designed for advanced anesthesia machines and anesthesia workstations. Manufactured by SDPE, this unit provides accurate flow control of multiple medical gases while incorporating a mechanical hypoxia guard system to ensure patient safety.

The hypoxia guard links Oxygen (O₂) and Nitrous Oxide (N₂O) flow, maintaining a minimum safe oxygen concentration and preventing delivery of hypoxic gas mixtures during anesthesia.

Key Features

• Four-tube rotameter assembly
• Integrated mechanical hypoxia guard safety mechanism
• Accurate and stable gas flow measurement
• Clear, high-visibility calibrated tubes
• Smooth float movement for precise control
• Medical-grade materials for continuous use
• Panel-mounted design for OEM integration

Typical Gas Configuration

• Oxygen (O₂)
• Nitrous Oxide (N₂O) – hypoxia guard linked
• Medical Air
• Auxiliary Gas (customizable)

(Gas configuration can be modified as per OEM requirements)

OEM Customization Options

• Flow range and scale calibration
• Tube length and material options
• Knob design and color coding
• OEM branding / private labeling
• Port orientation and mounting configuration
• Custom gas combinations

Technical Specifications (Typical)

• Product Type: 4 Tube Hypoxia Guard Rotameter
• Manufacturer: SDPE
• Number of Tubes: 4
• Safety System: Mechanical hypoxia guard
• Mounting Type: Panel mounted
• Usage: Continuous medical duty

(Specifications can be customized for OEM integration)
