Flow Switches
Model No: KCPL-FSS Series
Flow Switches are designed to monitor the presence or absence of liquid flow in pipelines and provide a switching signal for alarm, pump protection, interlocking or control applications.
A paddle or vane installed in the flow stream operates the internal microswitch when the flow reaches the set point. The switching point can be adjusted using the set-point screw, while interchangeable paddles allow the same flow switch to be adapted for different pipeline sizes.
Available with weatherproof or flameproof enclosures and multiple process connection options, the Flow Switch is suitable for industrial cooling water, utility lines, process pipelines and equipment protection applications.
Key Specifications
- Field-adjustable set-point screw for easy flow adjustment
- Interchangeable paddles for different pipeline sizes
- Weatherproof and flameproof enclosure options available
- SPDT 15 A / DPDT 2 × 5 A microswitch options
- Brass, SS304, SS316 or PTFE-coated wetted parts
Technical Specifications
- Fluid
- Clear liquid
- Flow Range
- 0.9 to 800 m³/h
- Line Size
- 25 NB to 200 NB (1″ to 8″)
- Mounting Connection
- 1″ BSP (M) / 1″ NPT (M)
- Connection Options
- Threaded / Flanged / Socket Weld / Butt Weld
- Design Temperature
- Up to 90°C; higher on request
- Design Pressure
- Up to 15 kgf/cm²
- Enclosure
- Weatherproof / Flameproof
- Specific Gravity
- Up to 2.95
Find Applications
- Pump protection and dry-run prevention
- Cooling water flow monitoring
- Heat exchanger and chiller flow monitoring
- Spray and fire-protection line monitoring
- Process line flow / no-flow detection
- Lubrication and utility line monitoring
Downloads & images
Technical documents
Types of Flow Switches We Manufacture
Select Explore specifications to view that configuration's data in a popup.

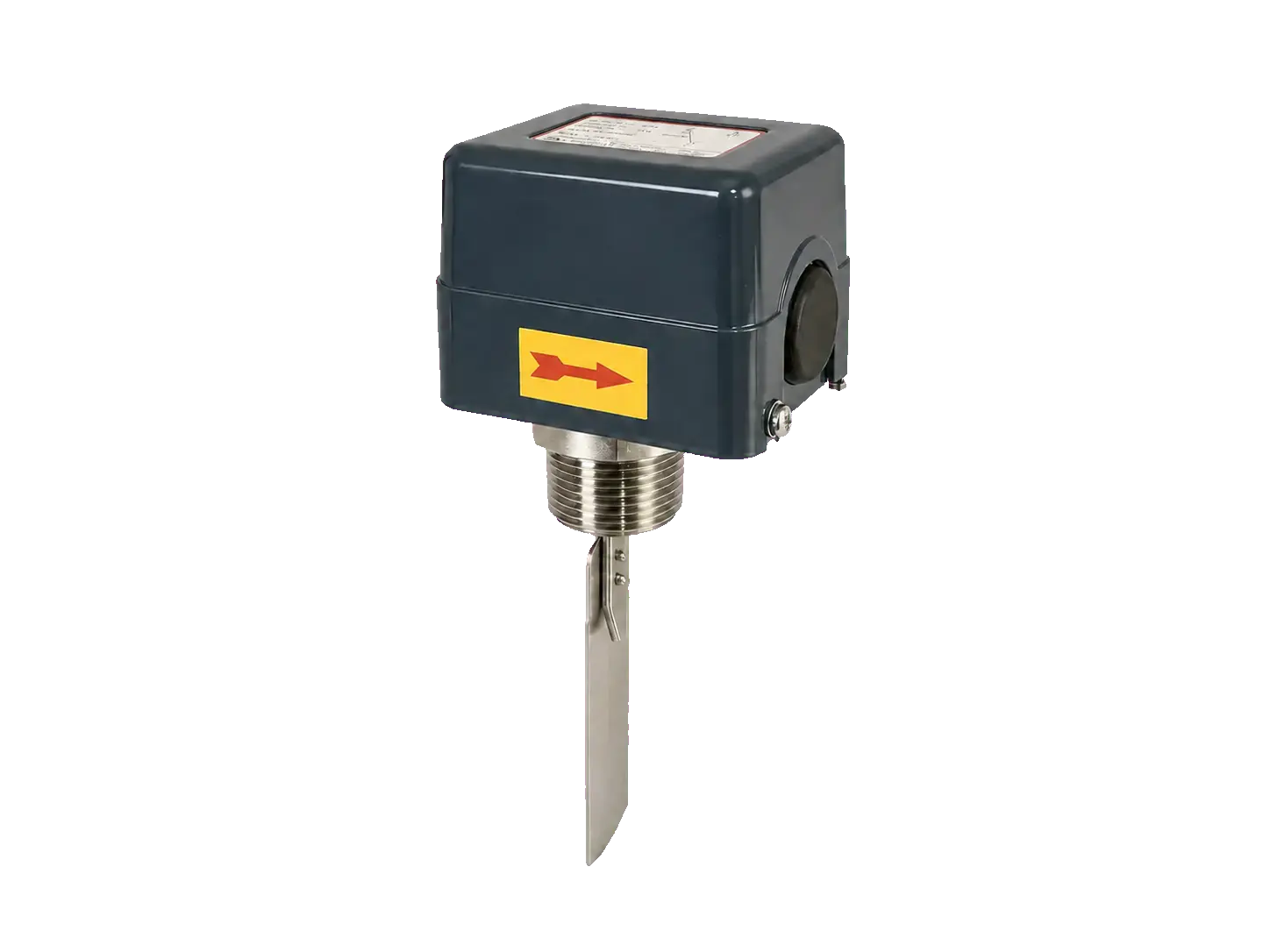

Flow Switch — Weatherproof
KCPL-FSS-WP Series
Weatherproof configuration for outdoor and general industrial liquid-flow monitoring.
- Configuration
- Standard flow switch with weatherproof enclosure
- Key Feature
- Suitable for outdoor and general industrial installations
- Suitable For
- Water, cooling and utility flow monitoring in non-hazardous areas

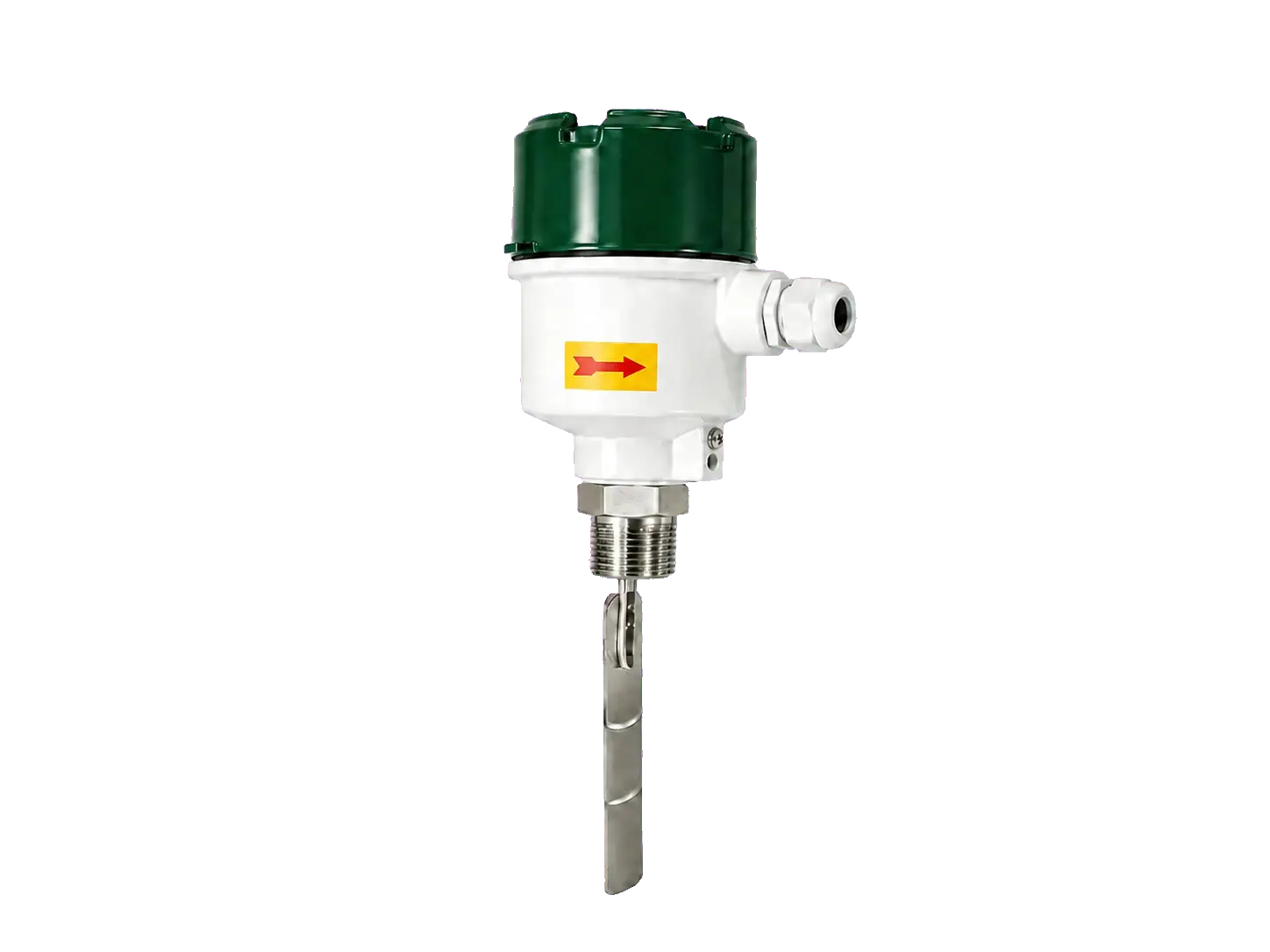

Flow Switch — Flameproof
KCPL-FSS-FP Series
Flameproof configuration for hazardous industrial areas.
- Configuration
- Flow switch with flameproof enclosure
- Key Feature
- Flameproof housing for hazardous-area installations
- Suitable For
- Process areas with flammable gases or vapours

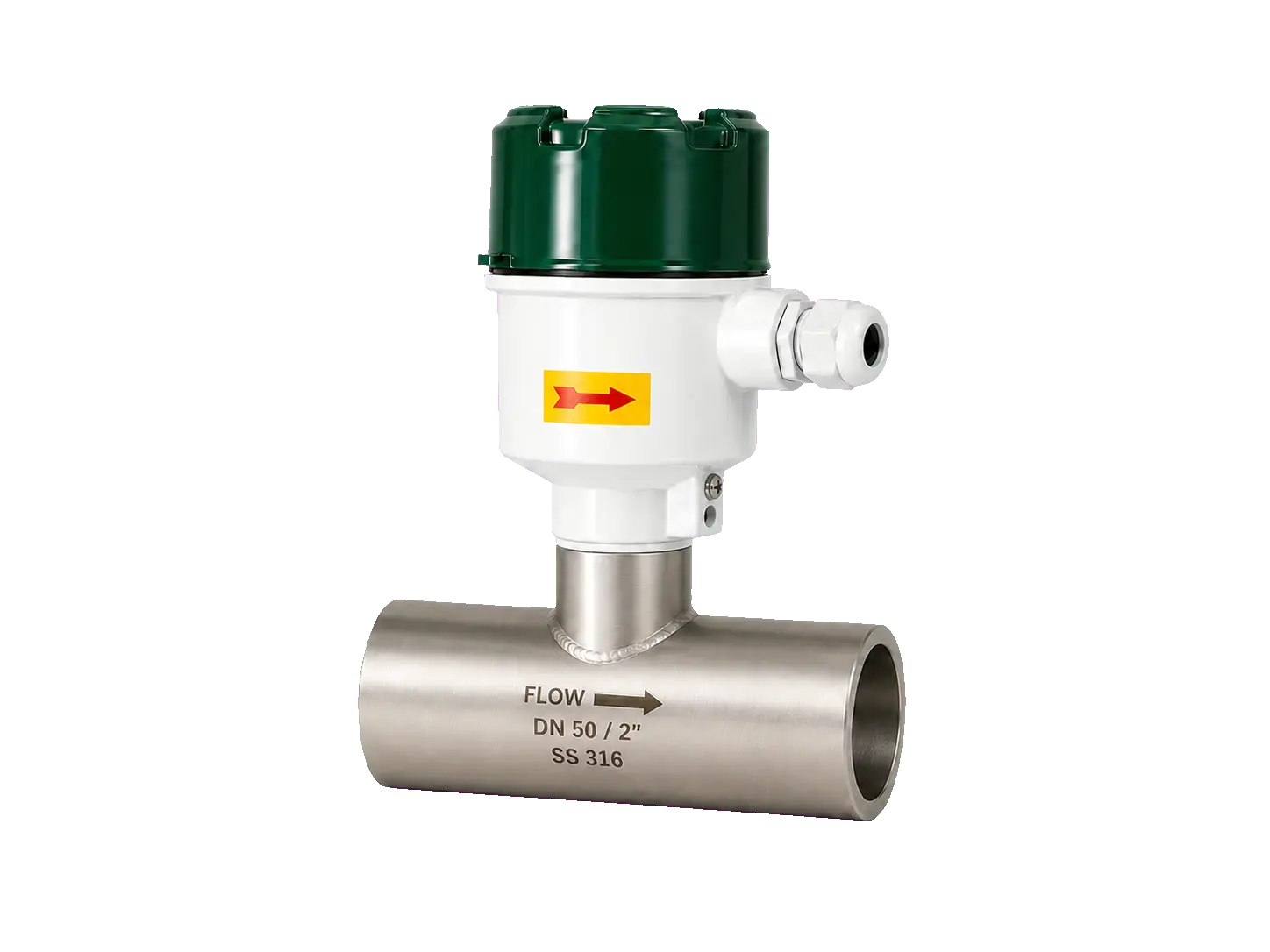

Flow Switch — Mounting Tee
Ready-to-install flow-switch assembly supplied with a dedicated mounting tee.
- Configuration
- Flow switch supplied with mounting tee
- Key Feature
- Ready-to-install pipeline assembly
- Suitable For
- Applications requiring a dedicated mounting arrangement

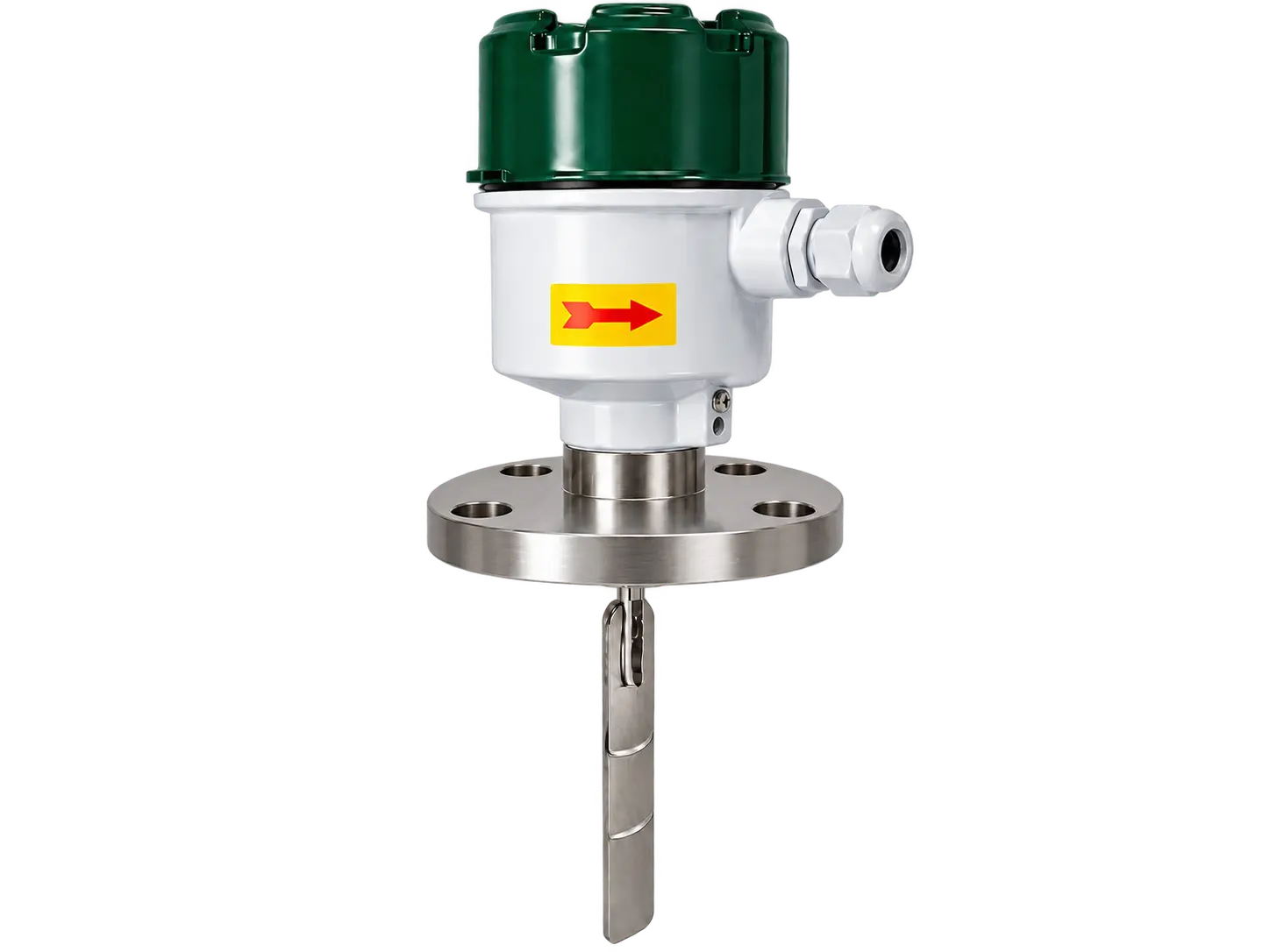

Flow Switch — Flanged
Flanged process connection for secure industrial pipeline mounting.
- Configuration
- Flanged process connection
- Key Feature
- Secure connection for larger pipelines
- Suitable For
- Process and utility pipelines

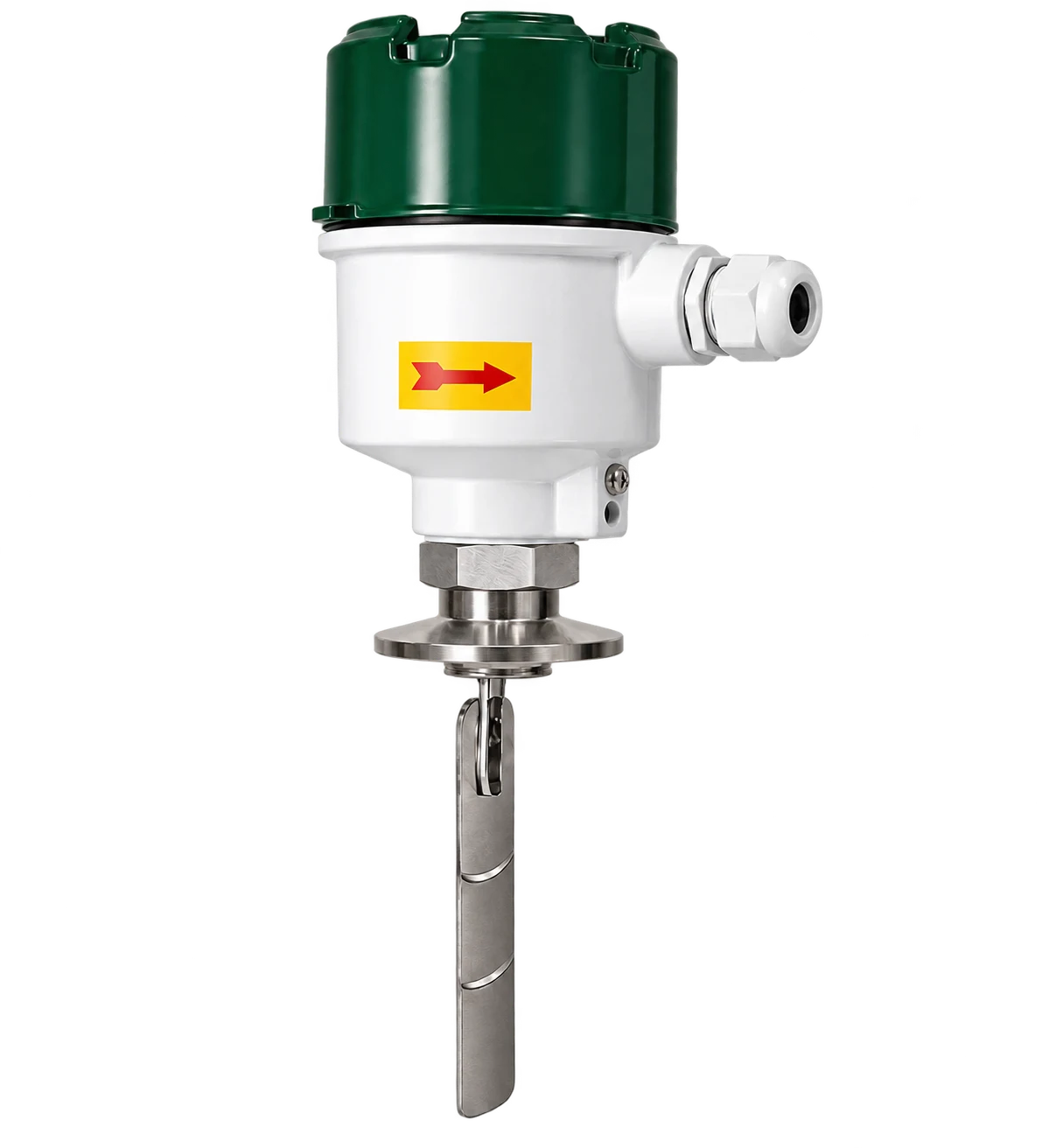

Flow Switch — Tri-Clover
Sanitary Tri-Clover connection for hygienic flow-monitoring applications.
- Configuration
- Sanitary Tri-Clover connection
- Key Feature
- Easy removal and hygienic installation
- Suitable For
- Pharma, food and beverage applications

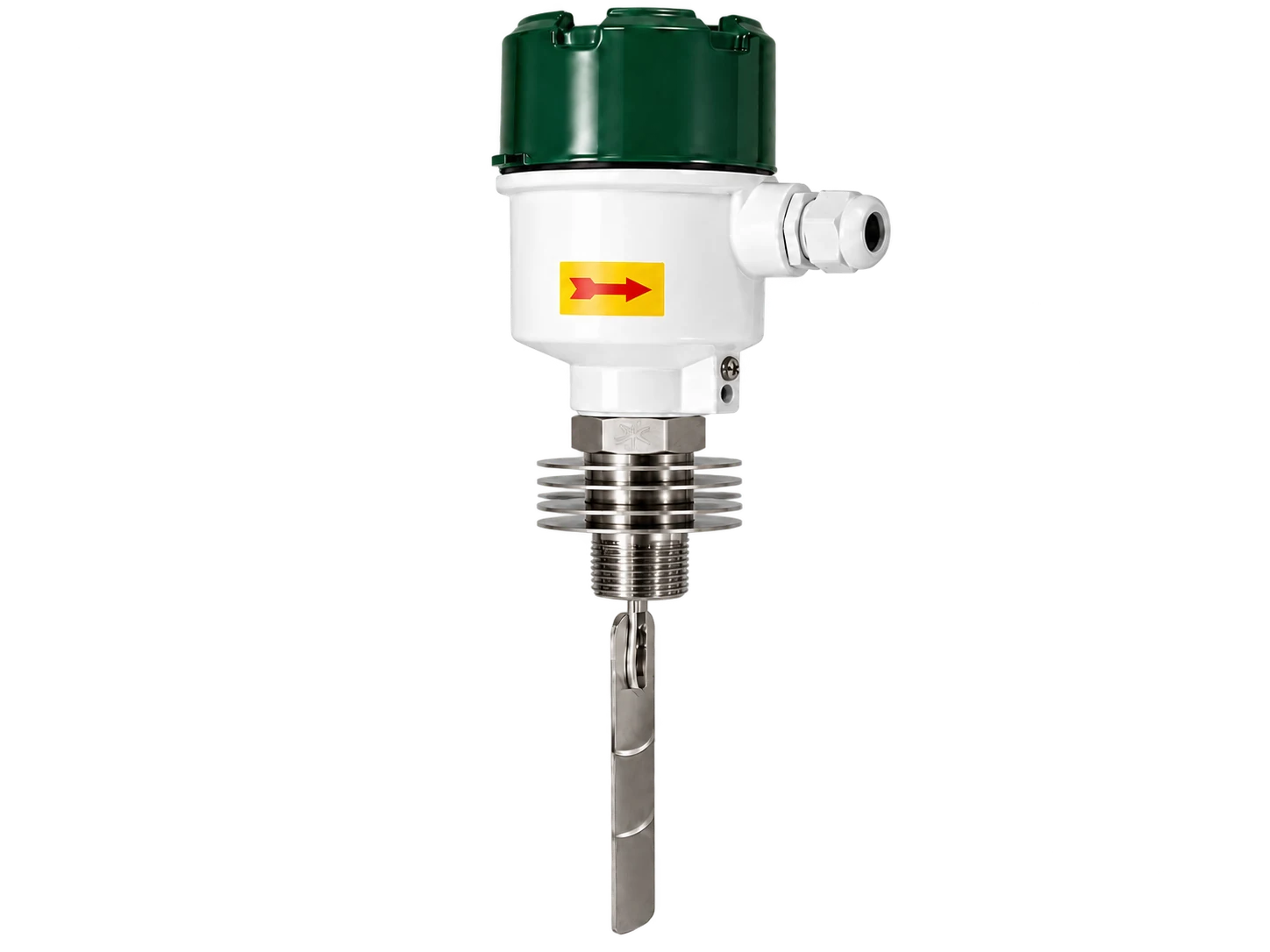

Flow Switch — Cooling Fin
Cooling-fin configuration for elevated process temperatures.
- Configuration
- Extended neck with cooling fins
- Key Feature
- Reduces heat transfer to switch housing
- Suitable For
- High-temperature process lines

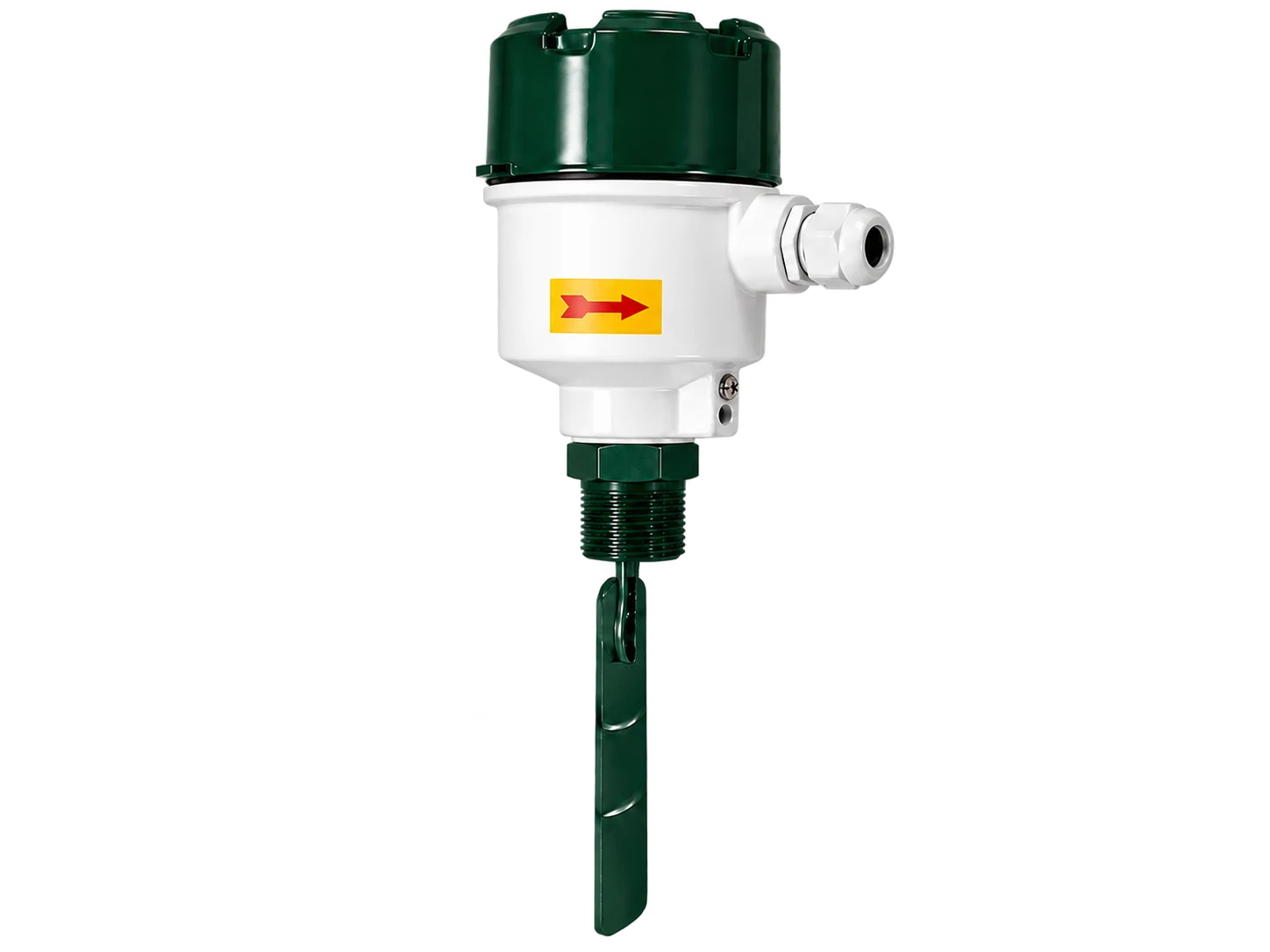

Flow Switch — PTFE-Coated
PTFE-coated wetted configuration for compatible corrosive liquids.
- Configuration
- PTFE-coated wetted components
- Key Feature
- Improved chemical resistance
- Suitable For
- Corrosive or aggressive liquids
