Hydrostatic Level Transmitter
Model No: KCHLIT-OS
Hydrostatic Level Transmitters are designed for continuous liquid-level measurement by directly sensing hydrostatic pressure at the bottom of a tank, sump, reservoir or well.
The transmitter is installed submerged in the liquid and converts the hydrostatic pressure into a proportional output signal such as 4–20 mA, 1–5 V or 2–10 V for remote indication, monitoring or control.
Available with SS304 / SS316 wetted parts and PU, PVC or PTFE (Teflon) cable options, the transmitter can be selected to suit different liquids and process conditions. Direct, threaded and flanged mounting configurations are available for different installation requirements.
Key Specifications
- Continuous hydrostatic level measurement up to 100 m
- 4–20 mA / 1–5 V / 2–10 V output options
- 24 VDC loop-powered operation
- SS304 / SS316 wetted parts
- Threaded or flanged process connections
- Rugged construction for submerged liquid-level measurement
Technical Specifications
- Measured Variable
- Liquid level – hydrostatic
- Measuring Range
- Up to 100 m
- Accuracy
- ±2% of FSD or better
- Mounting / Connection
- Direct / Threaded / Flanged
- Installation
- Submerged
- Wetted Parts
- SS304 / SS316
- Cable Material
- PU / PVC / PTFE (Teflon), selected as per application
- Output
- 4–20 mA / 1–5 V / 2–10 V
- Power Supply
- 24 VDC
Find Applications
- Water and wastewater tank level monitoring
- Sump and reservoir level measurement
- Borewell and underground tank level monitoring
- Process vessel liquid-level measurement
- Storage tank level monitoring
- Industrial water and utility applications
Downloads & images
Technical documents
Types of Hydrostatic Level Transmitter We Manufacture
Select Explore specifications to view that configuration's data in a popup.

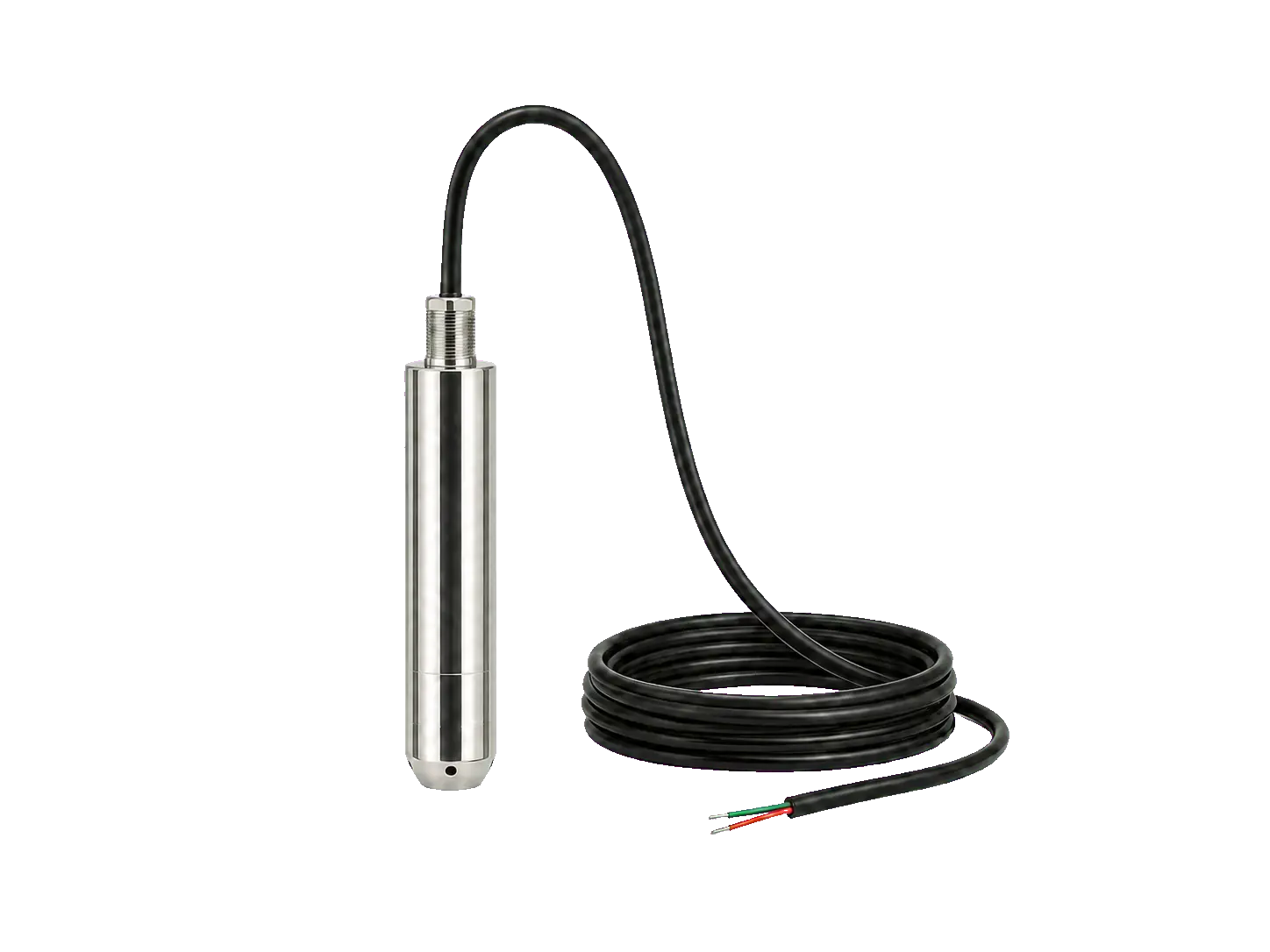

Hydrostatic Level Transmitter — Direct Mounted
KCHLIT-OS
Standard direct-mounted hydrostatic transmitter for open tank level measurement.
- Configuration
- Direct-mounted submerged transmitter
- Key Feature
- Simple and compact installation
- Suitable For
- Open tanks, sumps and reservoirs

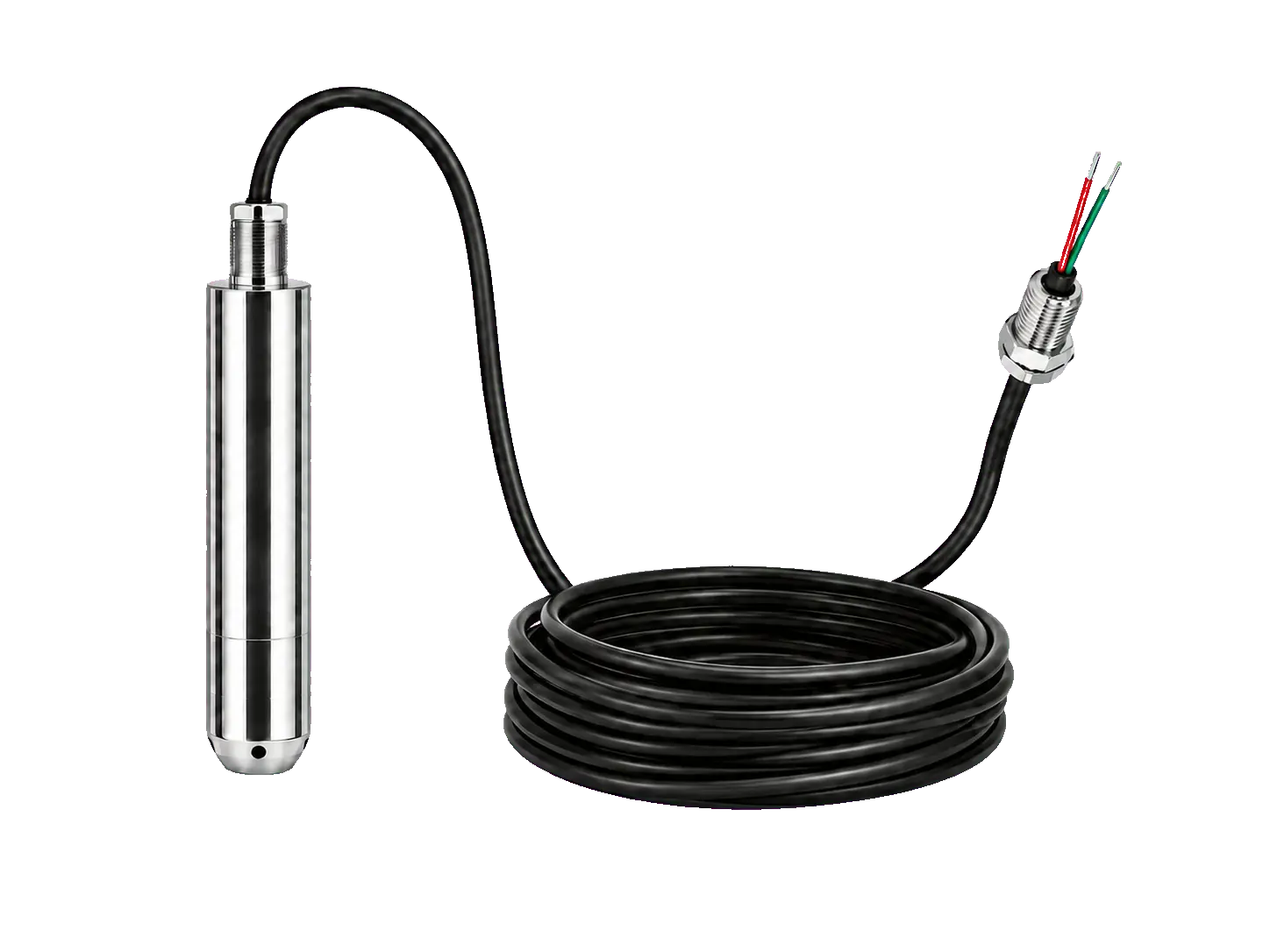

Hydrostatic Level Transmitter — Threaded Connection
Screwed process connection for standard tank nozzles and pipe fittings.
- Configuration
- Threaded mounting connection
- Key Feature
- Easy tank mounting
- Suitable For
- General liquid storage tanks

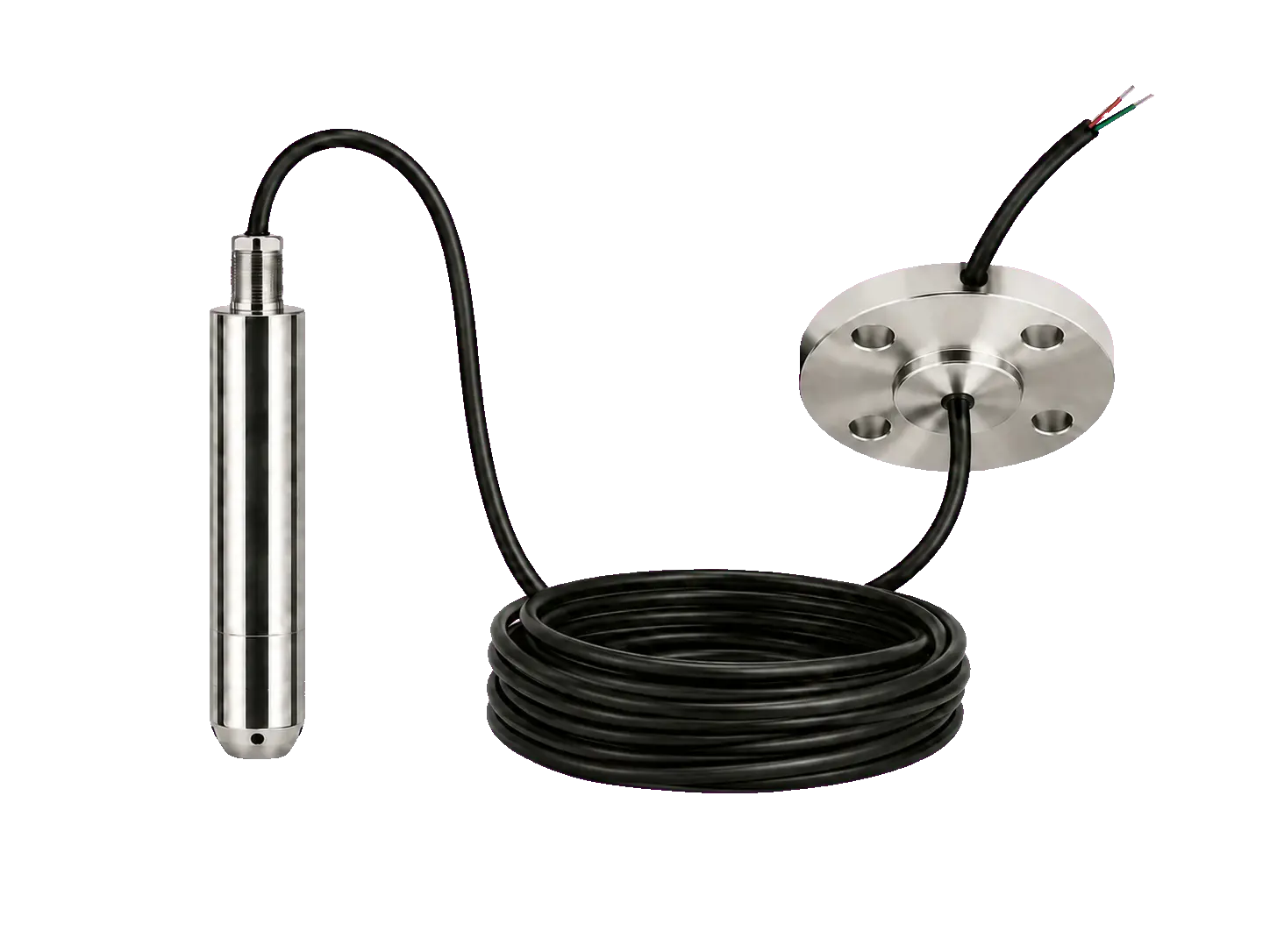

Hydrostatic Level Transmitter — Flanged Connection
Flanged process connection for larger vessels and standardised nozzles.
- Configuration
- Flanged mounting connection
- Key Feature
- Secure industrial mounting
- Suitable For
- Process vessels and large tanks
Hydrostatic Level Transmitter — Panel Mounted Indicator
KCHLIT-PI
Panel-mounted indicator version giving a clear, real-time level display on the control panel.
- Configuration
- Remote panel-mounted level indicator
- Key Feature
- Clear level indication at the control panel
- Suitable For
- Remote monitoring applications
